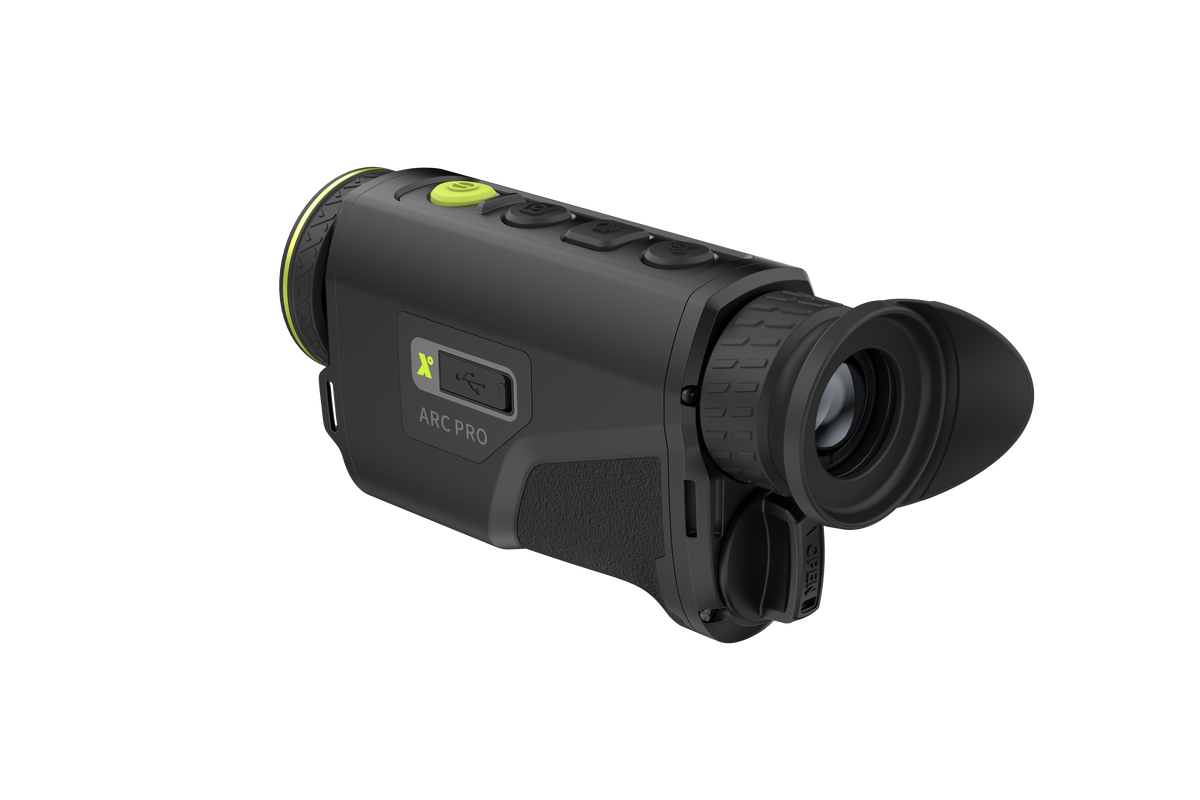

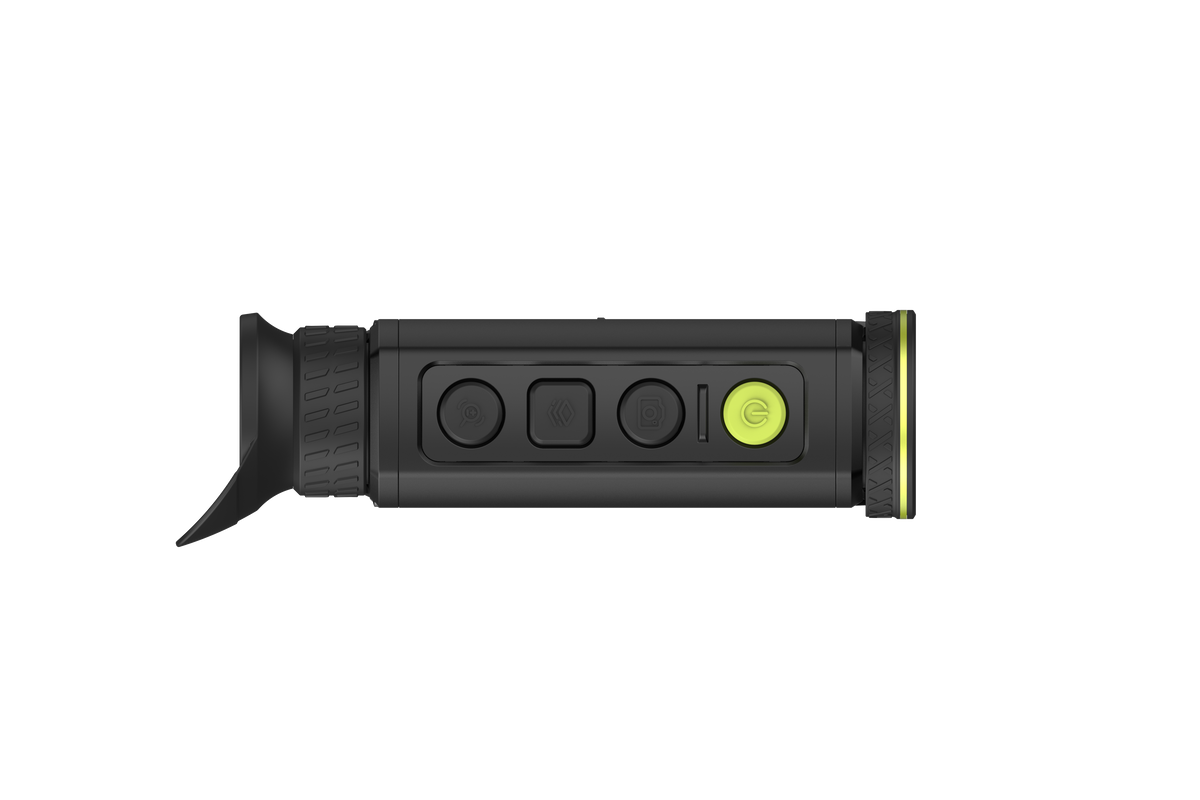

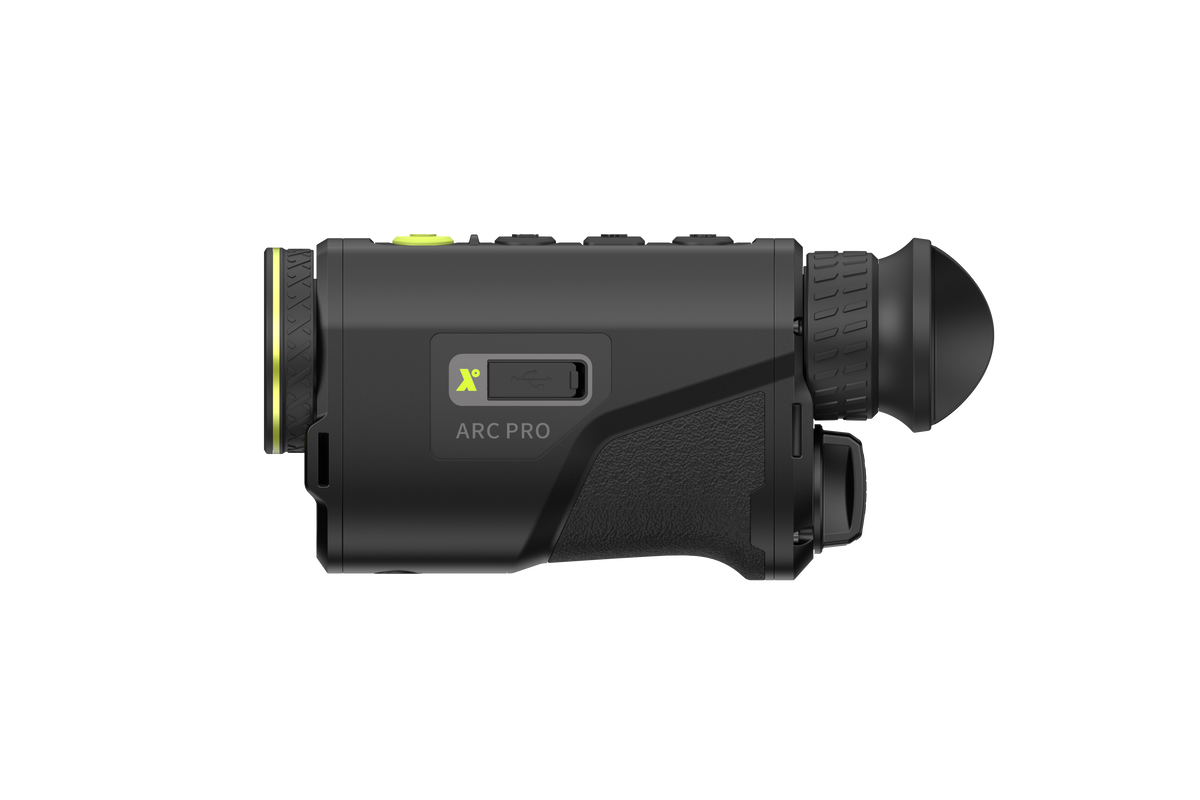

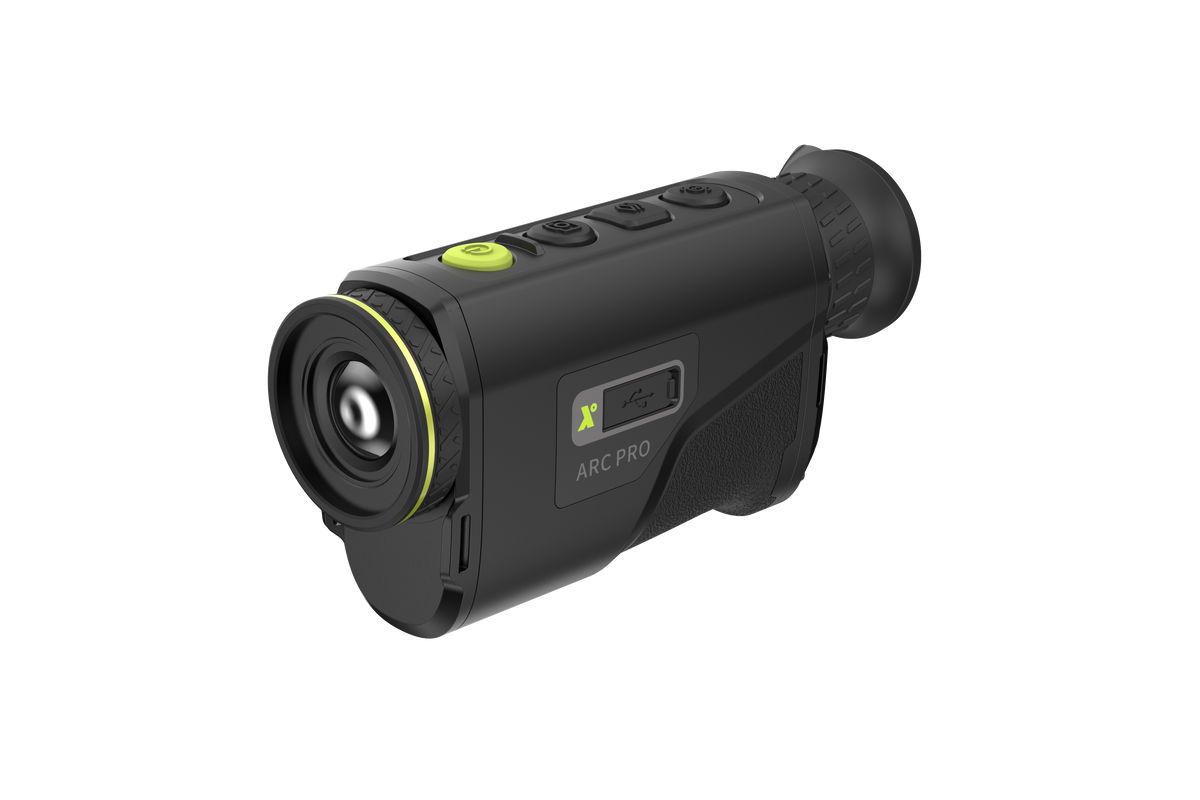

Pixfra Arc A604 PRO Thermal Imaging Monocular
Pixfra Arc A604 PRO Thermal Imaging Monocular
Featuring a sensitive 640×512, 12μm, <18mK NETD thermal sensor and an ultra-wide-angle 4mm f1.0 objective lens, the NEW Pixfra Arc A604 PRO delivers one of the widest fields of view of any thermal monocular on the market - presenting a quality thermal picture on to a 1440×1080 OLED display.
The Arc A604 PRO is packed with a range of features designed to enhance your observation work, including a built-in video recorder, multiple colour palettes, and even screen sharing through the Pixfra app.
A new addition to the Pixfra Arc range, the A604 PRO takes a different approach to the rest of the line-up. Rather than chasing maximum detection range, it's built around an exceptionally wide 102° (H) / 83° (V) field-of-view - the widest currently available on any thermal monocular. That wide-angle view is exactly why ecologists reach for this model over a narrower, higher-magnification monocular, as it lets you scan and track fast erratic activity across a broad area at close range, which is exactly what's needed for bat surveying, bird watching, and wildlife/ animal surveys. The Arc A604 PRO also offers continuous video recording in clips of up to 30 minutes - ideal for extended survey sessions.
Powerful Thermal Optics
The Pixfra Arc A604 PRO offers professional-grade thermal imaging capabilities in a compact, lightweight and cost-effective device - built around the widest field-of-view in the Arc range (and possibly in the world).
Featuring a highly sensitive 640×512, 12μm thermal sensor with <18mK NETD sensitivity, this thermal imaging monocular pairs class-leading sensitivity with an ultra-wide-angle 4mm objective lens, giving a huge 102° (H) / 83° (V) field of view and a 200m detection range - keeping you well informed of activity across the whole scene, whether you're a professional ecologist carrying out surveys, an estate manager monitoring boundaries and woodland, or a hobbyist nature observer curious about nocturnal wildlife. The result is presented as a crisp, clear thermal image onto a full colour 1440×1080 OLED display.
A wider field of view always provides better observation and detection opportunities, letting you glean more informative results when reviewing recorded survey data - which is exactly why the Arc A604 PRO is built around the widest field of view in the Arc range rather than prioritising extra reach, making it ideal for bat surveys and close-range wildlife observation. A close focus distance of just 20mm and 0.4x-3.2x digital zoom also make it well suited to examining detail close up, such as nest sites.
Hours of Effective Observation
The Arc A604 PRO features a replaceable, rechargeable 3,200mAh 18650 battery, offering up to 6 hours of runtime - and with the device powered via a standard 5V USB-C connection, it's easy to top up or run from a power bank between sessions.
Share the View
The Arc A604 PRO is designed to enhance the viewing experience during group observations, thanks to its ability to connect to four smart devices via the free Pixfra app - sharing its screen with up to four people near to the device, so when one person spots an object or animal of interest, all four members of the group can observe at the same time. The app is FREE to download for both Android and iOS.
Comfort & Portability
Designed first and foremost for comfort and resilience, the Arc A604 PRO features an ergonomically designed body-shell and convenient button arrangement, ensuring easy operation and comfortable observations over long periods.
Weighing just 380g, the Arc A604 PRO remains lightweight, reducing the likelihood of fatigue when in-hand and fitting comfortably in a pack or pocket when not in use.
A robust magnesium alloy casing offers protection against everyday bumps and scrapes, and its IP67 waterproof rating means the device can be used in any conditions, withstanding a splash and protecting it against water ingress.
Plus, for those who need to venture into challenging environments, the Arc A604 PRO will even remain unaffected in extreme temperatures from –30 °C to +55 °C.
Specification
| Thermal Sensor | 640×512, 12μm, <18mK NETD |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Spectral Range | 8μm～14μm |
| Frame Rate | 50 Hz |
| Objective Lens | 4mm f1.0 |
| Field of View | H: 102°; V: 83° |
| Detection Range | 200m |
| Magnification | 0.4x |
| Colour Palettes | 6 (white hot/black hot /iron red/ alarm/amber/emerald) |
| Close Focus Distance | 20mm |
| Digital Zoom | 0.4x ~ 3.2x |
| Display Screen Dimensions | 0.41 inch, OLED |
| Screen Resolution | 1440 x 1080 |
| Diopter | -4D ~ +5D |
| Eye Relief | 15mm |
| Uniformity Correction | Auto; Manual |
| Storage | Built-in EMMC (32 GB) |
| Video Recording | Yes (up to 30-minutes per clip) |
| Audio Recording | Yes |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Power Supply | 5 V Type-C |
| Battery Type | 1 rechargeable 18650 Lithium battery |
| Battery Capacity | 3,200 mAh |
| Battery Operating Life | Up to 6h |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Protection | IP67 |
| Product Dimensions | 168 mm × 53 mm × 78 mm (6.61″ × 2.09″ × 3.07″) (L × W × H) |
| Net Weight | 380 g (excluding battery weight) |
What you get
Pixfra Arc A604 PRO
1 x 18650 Li-ion Battery
USB-C Charging Cable
Tripod Adapter
Rubber Eyecup
Carry Pouch
User Manual
Lens Cleaning Cloth
