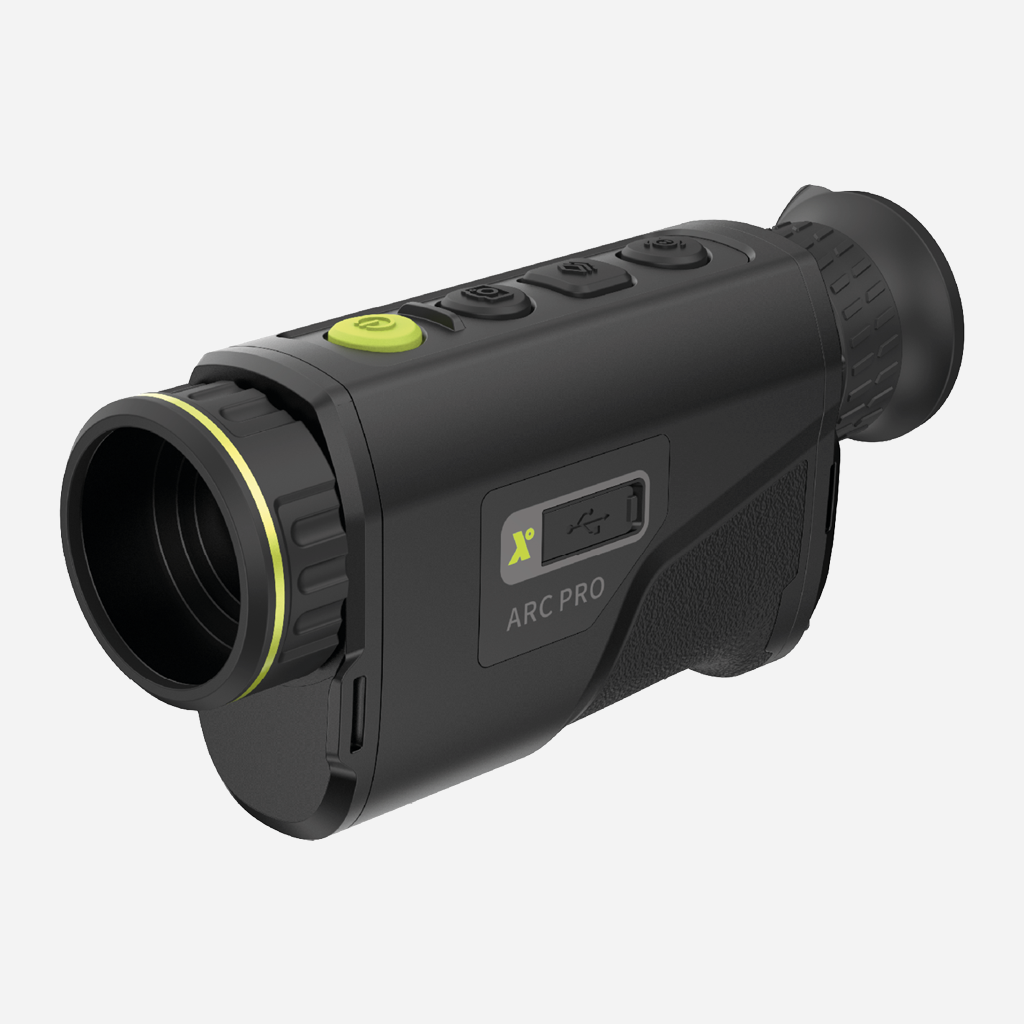

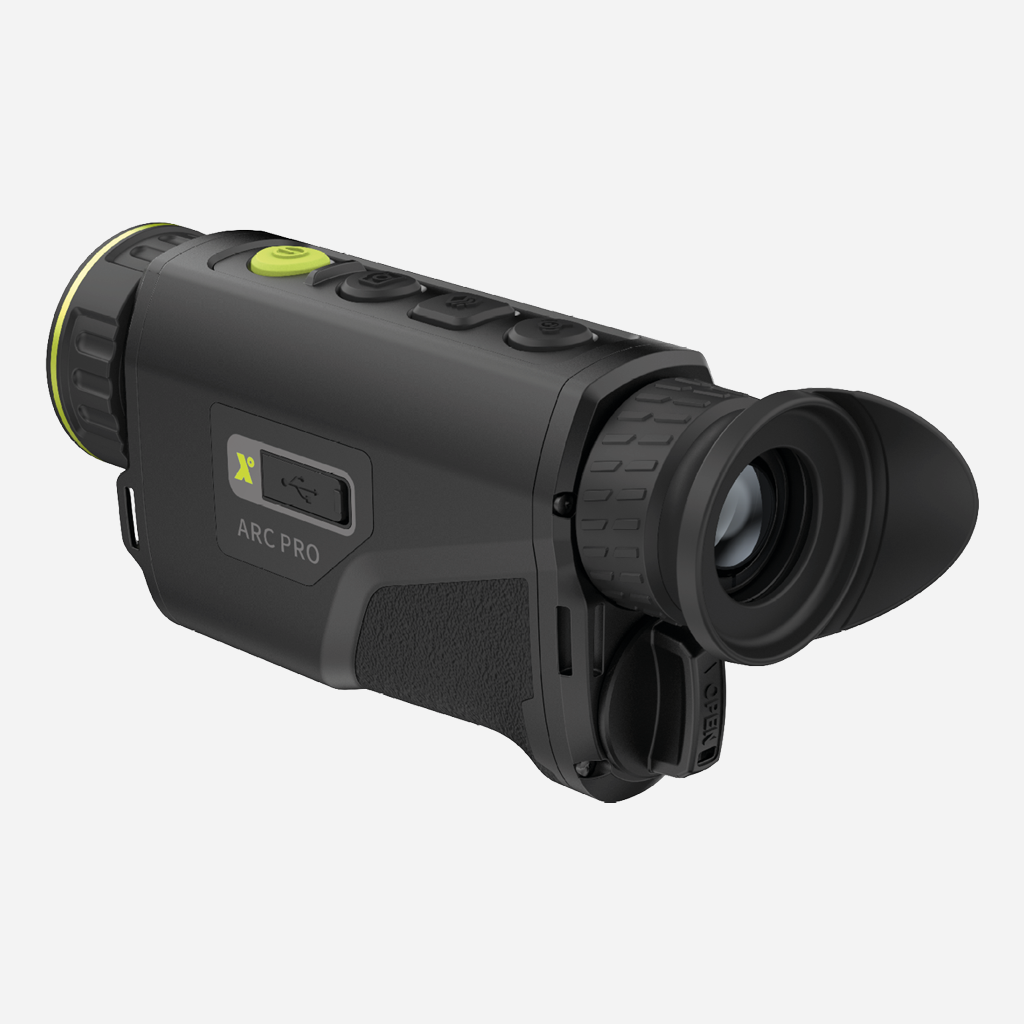

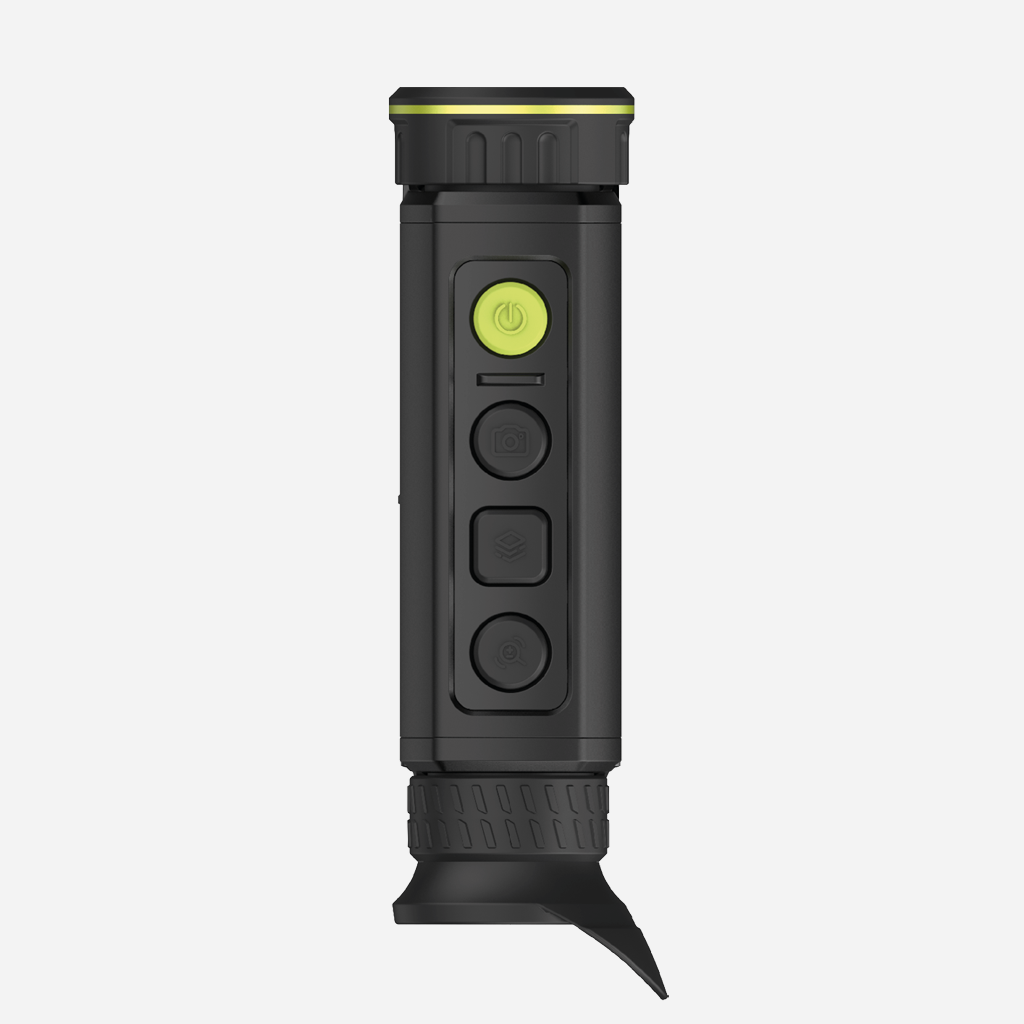

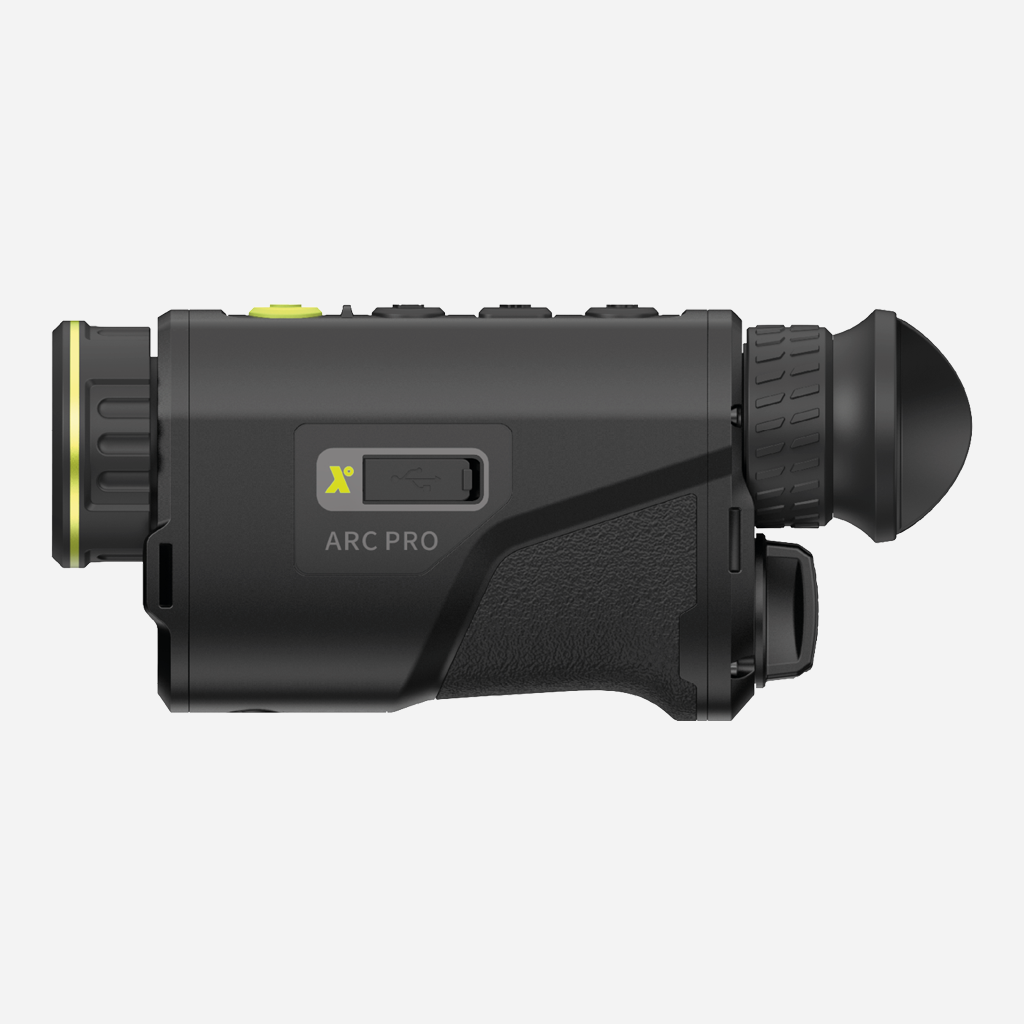

Pixfra Arc A613 Pro 18mK Thermal Imaging Monocular
Pixfra Arc A613 Pro 18mK Thermal Imaging Monocular
Featuring a sensitive 640×512, 12μm, <18mK NETD thermal sensor and a powerful 13mm f1.0 objective lens, the NEW Pixfra Arc A613 PRO will achieve a detection range of up to 700m and presenting a stunning thermal picture on to a full colour 1440×1080 OLED display.
The Arc A613 PRO is packed with a range of features designed to enhance your observation work, including a built-in video recorder, multiple colour palettes, and even screen sharing through the Pixfra app.
Building on the original Arc A613, the PRO retains the same wide 32.3° (H) / 25.8° (V) field of view that made the standard model so popular for ecology work - but pairs it with improved <18mK thermal sensitivity and a longer 700m detection range. Its wide field of view is the key reason ecologists reach for this model over a narrower, higher-magnification monocular: it lets you scan and track fast-moving activity across a broad area, which is exactly what's needed for bat surveying, bird watching, and wider wildlife and animal surveys. All Pixfra Arc models also offer continuous video recording up to 2 hours per clip, ideal for extended survey sessions.
Powerful Thermal Optics
The Pixfra Arc A613 PRO offers pro-grade thermal imaging capabilities in a compact, lightweight, and most importantly, cost-effective device - now with enhanced thermal performance and extended detection range that opens it up to even more applications.
Featuring a highly sensitive 640×512, 12μm thermal sensor with significantly improved <18mK NETD sensitivity, this thermal imaging monocular out-performs the original Arc A613. Its 13mm objective lens provides clear optics, a wide 32.3° field of view, and an extended 700m detection range - keeping you well informed of activity across the whole scene, whether you're a professional ecologist carrying out surveys, an estate manager monitoring boundaries and woodland, or a hobbyist nature observer curious about nocturnal wildlife. The result is presented as a crisp, clear thermal image onto a full colour 1440×1080 OLED display.
A wider field of view always provides better observation and detection opportunities, letting you glean more informative results when reviewing recorded survey data - which is exactly why the Arc A613 PRO retains its predecessor's wide field of view rather than trading it away for extra reach, making it ideal for bat surveys and wildlife observation.
Hours of Effective Observation
The Arc A613 PRO features two replaceable, rechargeable batteries, each offering up to 6 hours of runtime - meaning you can keep your observations going well into the night without worrying about recharging.
Share the View
The Arc A613 PRO is designed to enhance the viewing experience during group observations thanks to its ability to connect to four smart devices via the free Pixfra app. Through this intuitive app, the Arc PRO can share its screen with up to four people located within 20m of the device - so, when one person spots an object or animal of interest, all four members of the group can observe at the same time, without having to share the device's viewfinder. The app is FREE to download for both Android and iOS.
Comfort & Portability
Designed first and foremost for comfort and resilience, the Arc A613 PRO features an ergonomically designed body-shell and convenient button arrangement, ensuring easy operation and comfortable observations over long periods.
Weighing just 370g, the Arc A613 PRO remains lightweight, reducing the likelihood of fatigue when in-hand and fitting comfortably in a pack or pocket when not in use.
A robust magnesium alloy casing offers protection against the everyday bumps and scrapes that occur in the field, and its IP67 waterproof rating means the device can be used in any conditions, withstanding a splash and protecting it against water ingress.
Plus, for those who need to venture into challenging environments, the Arc A613 PRO will even remain unaffected in extreme temperatures from –30 °C to +55 °C.
Specification
| Thermal Sensor | 640×512, 12μm, <18mK NETD |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Spectral Range | 8μm~14μm |
| Frame Rate | 50 Hz |
| Objective Lens | 13mm f1.0 |
| Field of View | H: 32.3°; V: 25.8° (wide FOV — ideal for ecology and animal surveys) |
| Detection Range | 700m |
| Magnification | 1.1x |
| Colour Palettes | 6 (white hot/black hot/iron red/alarm/amber/emerald) |
| Close Focus Distance | 0.5m |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Display Screen Dimensions | 0.41 inch, OLED |
| Screen Resolution | 1440 x 1080 |
| Diopter | -4D ~ +5D |
| Eye Relief | 15mm |
| Uniformity Correction | Auto; Manual |
| Storage | Built-in EMMC (32 GB) |
| Video Recording | Yes (up to 2-hours per clip) |
| Audio Recording | Yes |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Power Supply | 5 V Type-C |
| Battery Type | 2 x rechargeable 18650 Li-ion batteries |
| Battery Capacity | 3,200 mAh (each) |
| Battery Operating Life | Up to 6h per battery |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67 |
| Product Dimensions | 175 mm × 53 mm × 78 mm (6.89′′ × 2.09′′ × 3.07′′) (L × W × H) |
| Packaging Dimensions | 227 mm × 150 mm × 132 mm (8.93′′ × 5.90′′ × 5.19′′) (L × W × H) |
| Net Weight | ≤370 g (excluding battery weight) |
What you get
Pixfra Arc A613 PRO
2 x 18650 Li-ion Batteries
USB-C Dual Bay Charger
L-Shaped Tripod Adapter
Rubber Eyecup
Carry Case
Carry Pouch
User Manual
Lens Cleaning Cloth
Warranty
This comes with a 3 year warranty from Pixfra. See the User Manual that comes with the Pixfra Arc A613 PRO.
